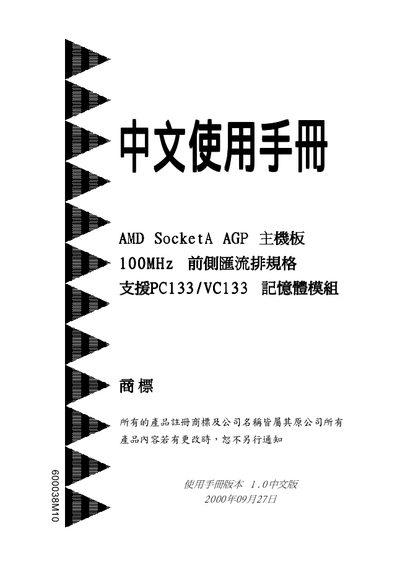

AMD SocketA AGP System Board User Manual

This is a Chinese user manual that introduces the features and characteristics of Awar d BI OS, including installation and use.

Brand: AMD
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 69
File format: PDF
File size: 9.3 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: 5D7E1B017A949ACB5606CF189ED650B0
PDF: AMD SocketA AGP System Board User Manual PDF

About this manual

This manual covers the AMD SocketA AGP system board, detailing its MicroATX form factor, supported AMD Athlon processors, and AGP graphics interface. It includes sections on component layout, power connections, and required memory types.

The document also explains BIOS settings, remote power‑on functionality, and the USDM monitoring program, along with safety precautions for handling the board and preventing electro‑static damage. This manual is written in Chinese.

What's inside

Introduction
System Board Specifications
Installation
BIOS Settings
Power Management
AGP Overview
USDM Monitoring Program
Safety Precautions

Specifications

Front Side Bus	100 MHz
Memory Support	PC133 / VC133 modules
Form Factor	MicroATX
Power Connector	20‑pin ATX

Frequently asked questions

What type of power connector does the board use?

The board uses a 20‑pin ATX power connector.

Which memory modules are supported?

It supports PC133 and VC133 memory modules.

What BIOS feature enables remote power‑on?

The ATX power connector supports a remote power‑on function.

What form factor is the motherboard designed for?

The motherboard follows the MicroATX specification.
