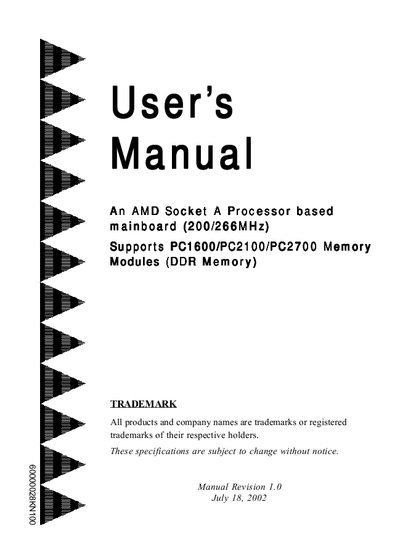

This document describes a mainboard based on an AMD Soc processor, which supports PC1600/PC2100/PC2700 DDR memory modules. It includes frequently asked questions about the POST port and a user manual.
This manual provides an overview of the AMD Socket A processor based mainboard, including supported CPUs, memory types, and system interfaces. It describes the ATX form factor, AGP slot, Ultra ATA/66/100/133 controller, and hardware monitoring features such as CPU temperature, voltage and fan RPM.
The guide walks through installation steps, jumper settings, BIOS configuration, power management, and includes appendices with advanced chipset features, POST code explanations, and BIOS update procedures.
| Supported Memory | PC1600/PC2100/PC2700 DDR |
|---|---|
| CPU Socket | Socket A (PGA 462) |
| System Interface Speed | 200/266 MHz |
| Form Factor | ATX |
| IDE Controller | Ultra ATA/66/100/133 Bus Master |
It indicates an overclock error; clear CMOS or press the insert key to power on the system.
