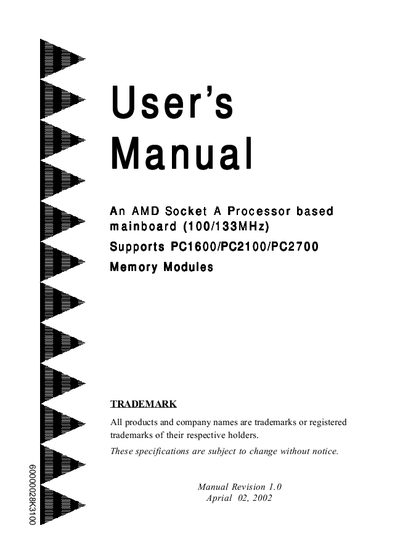

AMD Socket A Processor Based Mainboard 100/133MHz User Manual

AMD Socket A processor based mainboard, supports PC1600/PC2100/PC2700 memory modules.

Brand: AMD
Category: Motherboard
Document type: User Manual
Language: English
Pages: 82
File format: PDF
File size: 8.2 MB
Published: 05 April, 2012
Updated: 30 September, 2023
Model: 133MHz
MD5 checksum: C6217A578EFC974CAAA8479181B9D4B0
PDF: AMD Socket A Processor Based Mainboard 100/133MHz User Manual PDF

About this manual

This manual provides an overview of the AMD Socket A processor based mainboard, describing its supported AMD Duron™ and Athlon™ processors, memory module compatibility, and key features such as AGP, Ultra ATA/66/100/133, and hardware monitoring.

It includes detailed installation instructions, jumper settings, BIOS configuration, power management options, and several appendices covering driver installation, BIOS updates, and additional utilities.

What's inside

Introduction
Overview
Features
Installation
BIOS Setup
Power Management
Hardware Monitoring
Appendix

Specifications

Supported Memory Modules	PC1600, PC2100, PC2700
Form Factor	ATX (ATX 2.01 or later)
IDE Controller	Ultra ATA/66/100/133 Bus Master
CPU Socket	Socket A (PGA 462)
System Interface Speed	200/266 MHz (Alpha EV6 bus protocol)

Frequently asked questions

What types of memory can be used with this board?

It accepts PC1600, PC2100, and PC2700 memory modules.

What form factor does the mainboard use?

The mainboard follows the ATX form factor and requires an ATX 2.01 or later case.

Does the board provide Ultra ATA support?

Yes, it includes an Ultra ATA/66/100/133 Bus Master IDE controller.
