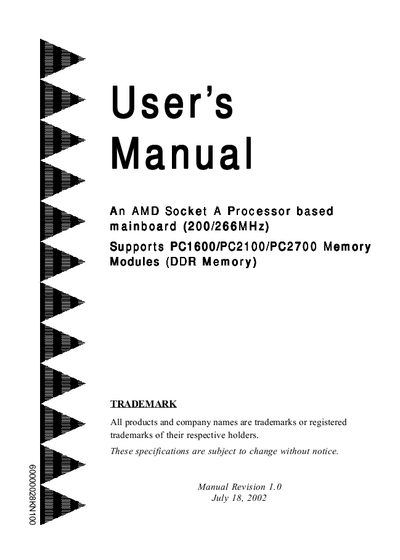

AMD Socket A Processor based mainboard(200/266MHz) user manual(1)

This is a user manual for AMD Socket A Processor based mainboard

Brand: AMD
Category: Motherboard
Document type: User Manual
Language: English
Pages: 94
File format: PDF
File size: 8 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: 50C83BB99A8184A5C64B112597201E61
PDF: AMD Socket A Processor based mainboard(200/266MHz) user manual(1) PDF

About this manual

This manual covers the AMD Socket A Processor based mainboard, detailing its components, supported processors, and system architecture. It introduces the board’s ATX form factor, supported memory types, and interface standards such as Ultra ATA/66/100/133 and AGP.

The document includes step‑by‑step installation instructions, BIOS configuration guidance, hardware monitoring features, and a comprehensive list of POST codes with troubleshooting solutions. Appendices provide additional technical details and BIOS update procedures.

What's inside

Introduction
Overview
Features
Installation
BIOS Setup
Hardware Monitoring
Appendix

Specifications

Supported Memory Types	PC1600/PC2100/PC2700 DDR
Supported ATA Standards	Ultra ATA/66/100/133
Form Factor	ATX
CPU Socket	Socket A (PGA 462)
System Interface Speed	200/266 MHz

Frequently asked questions

What should I do if an overclock error occurs?

Clear the CMOS or press the insert key to power on the system.
