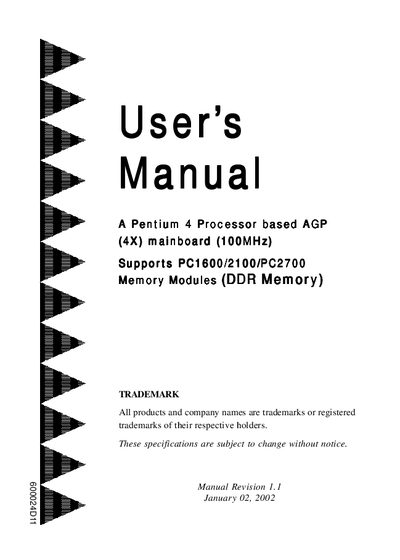

A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC1600/2100/PC2700 Memory Modules User's Manual

This is a user manual for A Pentium 4 Processor based AGP (4X) mainboard (100MHz)

Brand: A
Category: Motherboard
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 7.8 MB
Published: 05 April, 2012
Updated: 01 October, 2023
Model: AGP 4X
MD5 checksum: A3AA75C52B66876F0F16EC077F3A5747
PDF: A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC1600/2100/PC2700 Memory Modules User's Manual PDF

About this manual

This manual covers the features, installation, and configuration of a Pentium 4‑based motherboard with a 100 MHz front‑side bus. It supports DDR memory modules (PC1600/2100/PC2700), an AGP 2.0 4X graphics interface, and Ultra ATA/66/100 IDE controllers.

The document includes a detailed component checklist, step‑by‑step CPU and memory installation, jumper settings, BIOS setup options, hardware monitoring functions, and a comprehensive list of POST codes with troubleshooting guidance.

What's inside

Introduction
Overview
Accelerated Graphics Port (AGP)
Ultra ATA/66/100
Hardware Monitoring
Installation Procedure
BIOS Setup
POST Codes Appendix
Appendix

Specifications

Supported Memory Types	PC1600/2100/PC2700 DDR
IDE Controller	Ultra ATA/66/100
CPU Bus Speed	400 MHz system bus

Frequently asked questions

What does POST code FFh indicate?

It can mean a BIOS chip replacement issue, an incorrect BIOS update, a mainboard problem, or an improperly inserted add‑on card.

How can I resolve a POST code 2Dh error?

The error relates to the VGA BIOS; swap the VGA card and ensure it is inserted correctly.
