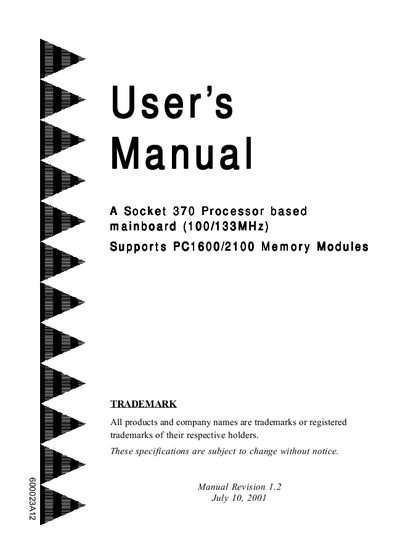

This manual provides a detailed introduction to the functions and features of Socket 370-based motherboards (100/133MHz) and supports PC1600/2100 memory modules.
This manual provides an overview of the A Socket 370 processor‑based mainboard, its ATX form factor, supported CPU frequencies (100 MHz / 133 MHz) and compatible PC1600/2100 memory modules. It includes a detailed block diagram, connector descriptions, and BIOS setup instructions.
Installation steps cover CPU insertion, jumper settings, memory configuration, and driver installation. The BIOS chapter explains standard CMOS setup, advanced chipset features, power‑management options, and the Soft‑Off function that allows the system to be shut down from the front‑panel button or the operating system.
| CPU frequency | 100 MHz / 133 MHz |
|---|---|
| Supported memory | PC1600 / PC2100 |
| Form factor | ATX |
| CPU socket | Socket 370 |
| Chipset | VT8233 |
| Power connector | 20‑pin ATX |
It uses a single 20‑pin ATX power connector.
