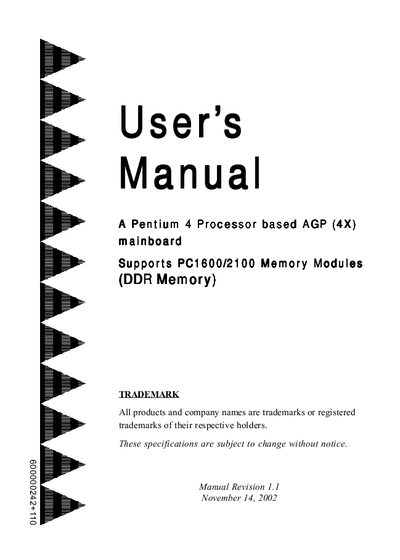

A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC1600/2100 Memory Modules User's Manual(1)

This is a user manual for an Intel Pentium 4 processor motherboard.

Brand: A
Category: Motherboard
Document type: User Manual
Language: English
Pages: 86
File format: PDF
File size: 5.9 MB
Published: 05 April, 2012
Updated: 30 September, 2023
Model: AGP 4X
MD5 checksum: CBBE7B565103309EEA3C321372A99059
PDF: A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC1600/2100 Memory Modules User's Manual(1) PDF

About this manual

This manual provides an overview of a Pentium 4‑based motherboard with an AGP 4X interface, detailing its supported memory types, storage interfaces, and hardware monitoring features. It includes sections on installation, BIOS configuration, power management, and driver setup.

The document also contains appendices with BIOS update instructions, utility guides, and optional software references such as Ghost cloning tools. Safety notices, warranty disclaimer, and a checklist of components are included at the beginning.

What's inside

Introduction
Features
Installation
BIOS Setup
Power Management
Appendix
Driver Installation
Hardware Monitoring

Specifications

Supported Memory	PC1600/2100 DDR modules
IDE Controllers	Ultra ATA/66/100/133 Bus Master

Frequently asked questions

What type of memory does the board support?

It supports PC1600 and PC2100 DDR memory modules.

What storage interfaces are available?

It includes Ultra ATA/66, ATA/100 and ATA/133 Bus Master IDE controllers.

Download PDF (5.9 MB)
