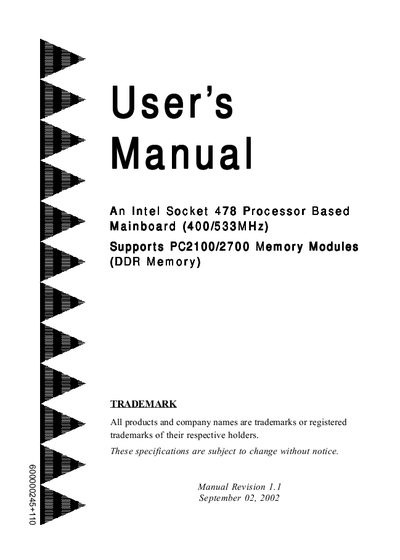

This document introduces a mainboard based on Intel Soc, which supports Socket 478 processors and DDR memory modules. The main features are compatibility with 400/533MHz processors and PC2100/2700 memory modules.
This manual covers the features, installation, BIOS configuration, and driver setup for an Intel Socket 478 processor‑based mainboard. It includes detailed sections on hardware components, POST troubleshooting, and optional interfaces such as AGP 3.0, Ultra ATA, and IEEE 1394.
The document also provides a comprehensive appendix of POST codes, BIOS setup options, and hardware monitoring capabilities, helping users configure and maintain the system effectively.
| CPU support | Intel Pentium 4 (Socket 478) |
|---|---|
| System bus speed | 400/533 MHz |
| Memory type | PC2100/2700 DDR |
| AGP interface | AGP 3.0, up to 2.1 GB/s |
| IDE controller | Ultra ATA/66/100/133 Bus Master |
| Optional IEEE 1394 | FireWire up to 400 Mbit/s |
Clear the CMOS or press the insert key to power on the system.
