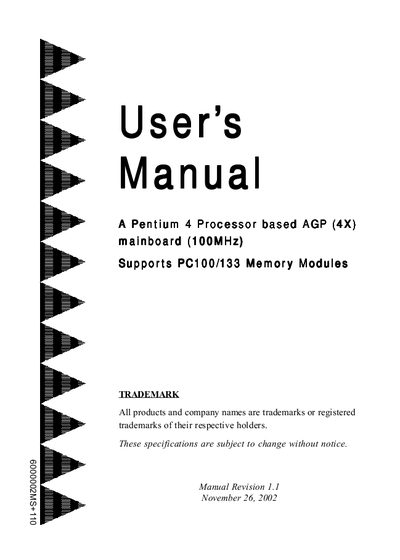

A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC100/133 Memory Modules User's Manual

This document is about a Pentium 4 Processor based AGP (4X) mainboard that supports PC100/133 memory modules.

Brand: A
Category: Motherboard
Document type: User Manual
Language: English
Pages: 86
File format: PDF
File size: 6.7 MB
Published: 05 April, 2012
Updated: 29 September, 2023
Model: AGP 4X
MD5 checksum: 697097C8231A368570E6F6611B323237
PDF: A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC100/133 Memory Modules User's Manual PDF

About this manual

This manual provides an overview of the Pentium 4‑based AGP (4X) mainboard, including its supported processors, memory types, and key interfaces such as AGP 2.0 and Ultra ATA/66/100/133. It also describes hardware monitoring features and power‑management options.

Installation instructions cover CPU installation, jumper settings, memory configuration, and connector layouts. The BIOS setup section details standard and advanced options, while the appendix contains utility guides and Ghost software usage examples.

What's inside

Introduction
Mainboard Features
Installation
BIOS Setup
Power Management
Appendix

Specifications

Mainboard frequency	100 MHz
Supported memory	PC100/133
IDE controller	Ultra ATA/66/100/133

Frequently asked questions

Which memory modules are compatible with this mainboard?

The board is compatible with PC100 and PC133 memory modules.

What IDE standards are supported?

The board supports Ultra ATA/66, Ultra ATA/100, and Ultra ATA/133.
