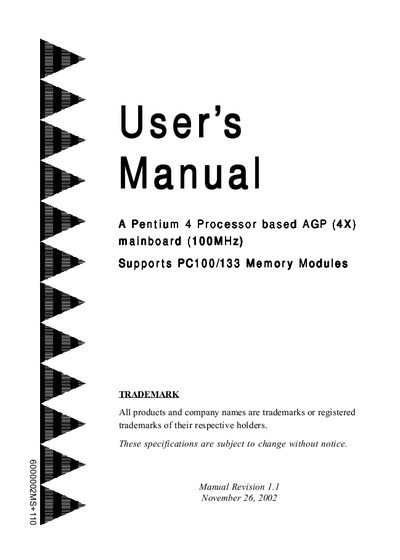

A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC100/133 Memory Modules User Manual

This is a user manual for a Pentium 4 Processor based AGP (4X) mainboard (100MHz). It mainly introduces the features and usage of the mainboard.

Brand: A
Category: Motherboard
Document type: User Manual
Language: English
Pages: 86
File format: PDF
File size: 6.7 MB
Published: 05 April, 2012
Updated: 30 September, 2023
Model: AGP 4X
MD5 checksum: D66A5902652C5082562526E4B55A7CB5
PDF: A Pentium 4 Processor based AGP (4X) mainboard (100MHz) Supports PC100/133 Memory Modules User Manual PDF

About this manual

This manual provides an overview of the mainboard’s components, including the Intel Pentium 4 processor support, AGP 2.0 4X interface, and Ultra ATA/66/100/133 controllers. It also describes the hardware monitoring features such as CPU temperature, voltage and fan speed.

Installation instructions cover CPU placement, jumper settings, memory configuration, and BIOS setup. Appendices contain power‑management options, password settings, driver installation guidance, and optional utilities such as Ghost cloning tools.

What's inside

Introduction
Mainboard Features
Installation Procedure
BIOS Setup
Power Management
Appendix

Specifications

Mainboard frequency	100 MHz
Supported memory	PC100/133
ATA support	Ultra ATA/66/100/133
Processor compatibility	Intel Pentium 4
System bus speed	400 MHz

Frequently asked questions

What type of memory modules does the board support?

The board supports PC100 and PC133 memory modules.

What ATA standards are supported by the mainboard?

It supports Ultra ATA/66, ATA/100 and ATA/133 protocols.

Which processor family is compatible with this mainboard?

The mainboard is designed for Intel Pentium 4 processors.
