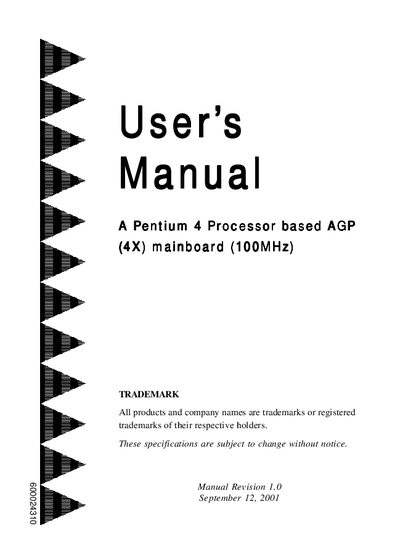

Pentium 4 Processor based AGP (4X) Mainboard User Manual

This manual introduces the features and characteristics of the AP4X motherboard

Brand: A
Category: Motherboard
Document type: User Manual
Language: English
Pages: 97
File format: PDF
File size: 7.2 MB
Published: 05 April, 2012
Updated: 30 September, 2023
Model: AGP 4X
MD5 checksum: 9B8F8729024324B4C23762025BB31E57
PDF: Pentium 4 Processor based AGP (4X) Mainboard User Manual PDF

About this manual

This manual covers a Pentium 4 processor‑based mainboard that uses the Intel® 850 chipset. It provides detailed information on system components, chipset architecture, and supported interfaces such as AGP 4X, Direct RDRAM, Ultra ATA, USB, and LAN.

The document includes sections on hardware installation, BIOS configuration, driver installation, and safety guidelines, as well as appendices for BIOS updates and troubleshooting.

What's inside

Introduction
System Overview
Chipset Components
Installation Procedure
BIOS Setup
Driver Installation
Appendix

Specifications

Chipset	Intel® 850
Memory Type	Direct RDRAM up to 2 GB, 400 MHz
AGP Interface	4X, 1.5 V
Memory Bandwidth	1.6 GB/s

Frequently asked questions

What chipset does this mainboard use?

The board uses the Intel® 850 chipset.

What type of memory is supported?

It supports Direct RDRAM up to 2 GB with a 400 MHz interface.

Which AGP version is supported?

The board supports a 4X, 1.5 V AGP interface.

Download PDF (7.2 MB)
