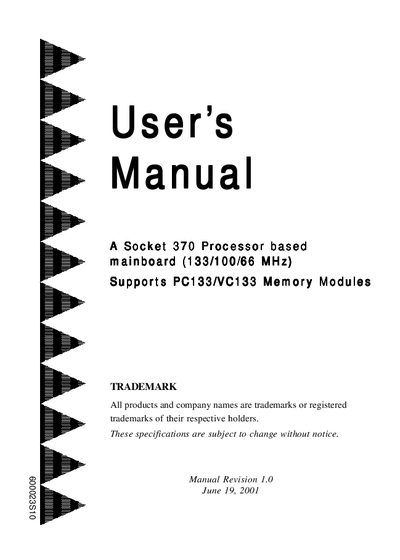

This user manual introduces the A Socket 370 Processor based mainboard (133/100/66 MHz), including component checklist, form factor, I/O Shield Connector, Power-On/Off (Remote), system block diagram, etc.
This manual describes a Socket 370 processor‑based ATX mainboard designed for 133 MHz, 100 MHz and 66 MHz CPUs. It supports PC133 and VC133 memory modules and provides an ATX‑compliant layout with a single 20‑pin power connector, PS/2 keyboard and mouse ports, serial and parallel ports, and USB connectors.
The document covers component checklists, installation procedures, jumper settings, BIOS configuration, power‑on/off functions, driver installation, and BIOS update instructions. Appendices provide a quick guide for the GHOST BIOS utility and detailed steps for flashing the system BIOS.
| Form factor | ATX |
|---|---|
| Supported CPU socket | Socket 370, up to 133 MHz |
| Memory type | PC133 / VC133 modules |
| Expansion slot | AGP slot (VI826694T) |
| Power connector | 20‑pin ATX power connector |
