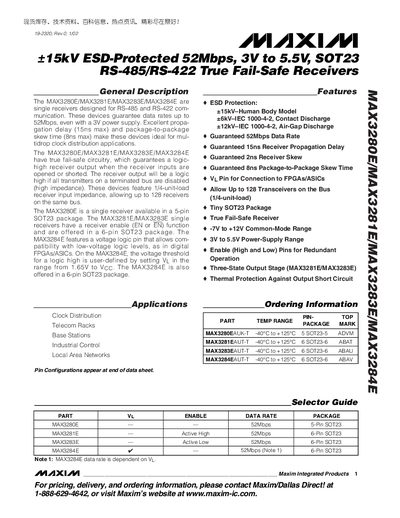

MAX3280E/MAX3281E/MAX3283E/MAX3284E are single-channel RS-485/RS-422 receivers with excellent propagation delay and package-to-package skew time, making them ideal for multi-drop clock distribution applications.
The MAX3280E, MAX3281E, MAX3283E and MAX3284E are single‑channel RS‑485/RS‑422 receivers offered in SOT‑23 packages. They feature true fail‑safe operation, guaranteeing a logic‑high output when inputs are open or shorted, and support data rates up to 52 Mbps with a 3 V to 5.5 V supply.
The devices include ESD protection up to +15 kV (Human Body Model), thermal shutdown, and a low‑voltage logic pin (VL) on the MAX3284E for compatibility with digital FPGAs. Up to 128 receivers can share a bus thanks to the 1/4‑unit‑load input impedance, and propagation‑delay matching enables multidrop clock distribution with minimal skew.
| Propagation Delay (typical) | 15 ns max |
|---|---|
| Receiver Skew | 8 ns max |
