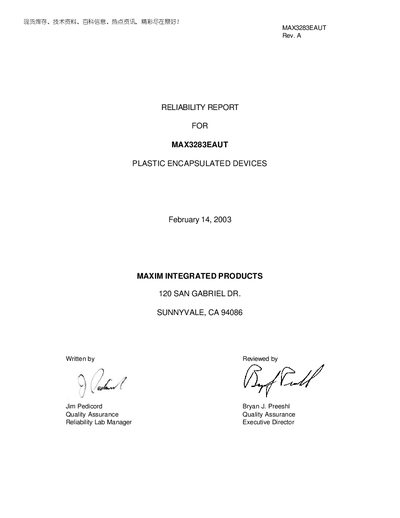

This document is about the reliability report of MAX3283EAUT product
This reliability report for the MAX3283EAUT plastic‑encapsulated receiver provides a full description of the device, including its RS‑485/RS‑422 communication capabilities, data rate, propagation delay, and fail‑safe features. It also lists absolute maximum ratings, supply voltage range, and operating temperature limits.
The document includes manufacturing and packaging information, die dimensions, quality‑assurance contacts, and detailed reliability evaluation results such as accelerated life testing, moisture resistance, ESD and latch‑up testing, and observed defect rates. Test conditions and outcomes are summarized in tables and attachments.
| Data Rate | up to 52 Mbps |
|---|---|
| Propagation Delay | 15 ns max |
| Package‑to‑Package Skew | 8 ns max |
| Supply Voltage Range | -0.3 V to +6 V |
| Operating Temperature Range | -40°C to +125°C |
| Package Type | 6‑Lead SOT23 |
| ESD Protection | +15 kV |
The device guarantees data rates up to 52 Mbps.
It operates from –40 °C to +125 °C.
The device provides +15 kV ESD protection on its I/O pins.
