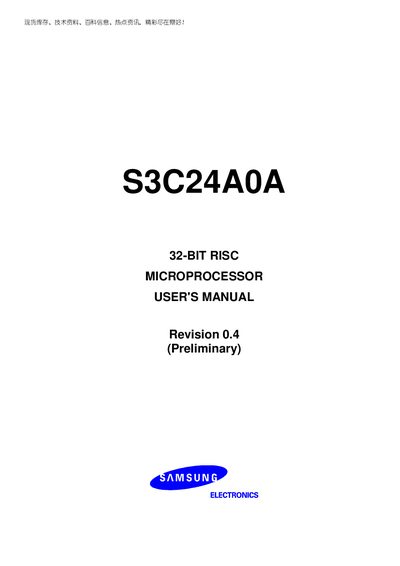

S3C24A0A 32-BIT RISC MICROPROCESSOR USER'S MANUAL
This manual introduces the Samsung S3C24A0A 32‑bit RISC microprocessor, covering its architectural overview, features, memory subsystem, and general peripherals such as serial and parallel communication, image processing, and display control. It also details electrical characteristics, package information, and pin assignments.
Subsequent chapters describe the on‑chip controllers—including SROM, SDRAM, NAND flash, bus matrix, interrupt, PWM timer, watchdog timer, DMA, and real‑time clock—along with their registers, operation modes, and programming guides. The document ends with mechanical data and package dimensions for the 337‑FBGA‑1313 package.
| Architecture | 32-bit RISC |
|---|---|
| Package type | 337‑FBGA‑1313 |
The manual is Revision 0.4 (Preliminary).
The publication number is 20‑S3‑CS3C24A0A‑112004.
