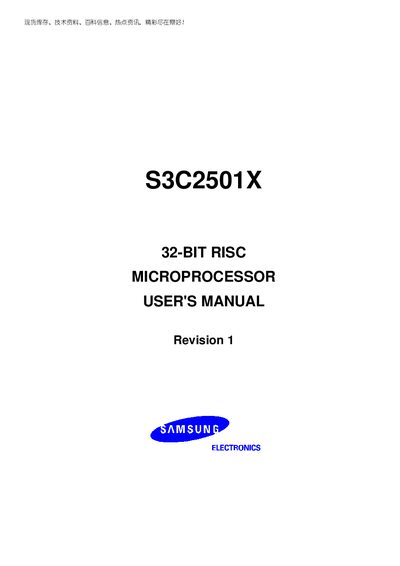

This document is the user manual for the S3C2501X 32-bit RISC microprocessor, providing technical information and features of the product.
This manual introduces the Samsung S3C2501X 32‑bit RISC microprocessor, covering its product overview, features, block diagram, pin assignment, and signal description. It also details the programmer's model, instruction set, system configuration, memory controller, and mechanical data for the device.
The document includes extensive tables of contents, chapter sections on system configuration registers, clock control, and package dimensions, as well as legal notices and publication information from Samsung Electronics.
| Package type | 272‑pin BGA (272‑BGA‑2727‑AN) |
|---|---|
| Publication number | 21‑S3‑C2501X‑122002 |
| Revision | Revision 1 |
It is supplied in a 272‑pin BGA package (272‑BGA‑2727‑AN).
The publication number is 21‑S3‑C2501X‑122002.
Samsung Electronics produced the S3C2501X.
This is Revision 1 of the user manual.
