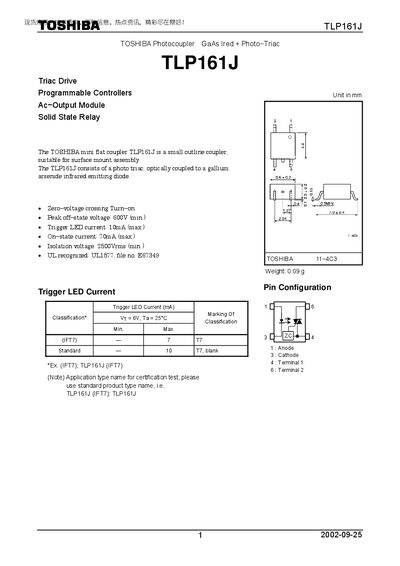

TLP161J is a photocoupler from Toshiba Semiconductor. It is a small outline coupler suitable for surface mount assembly. The device consists of a photo triac optically coupled to a gallium arsenide infrared emitting diode. It features zero-voltage crossing turn-on, a peak off-state voltage of 600V, a trigger LED current of 10mA, an on-state current of 70mA, and an isolation voltage of 2500Vrms.
The TLP161J is a miniature GaAs infrared optocoupler that combines a photo‑triac with a gallium arsenide LED, designed for surface‑mount assembly. It offers zero‑voltage‑crossing turn‑on and is UL‑listed (UL1577).
The document lists maximum ratings, recommended operating conditions, and detailed electrical characteristics such as forward voltage, on‑state current, isolation voltage, and temperature limits, along with safety and handling notes for designers.
| Peak off‑state voltage | 600 V (min.) |
|---|---|
| Trigger LED current | 10 mA (max.) |
| On‑state current | 70 mA (max.) |
| Isolation voltage | 2500 Vrms (min.) |
| Forward current rating | 50 mA |
The forward current rating is 50 mA.
The isolation voltage is 2500 Vrms (minimum).
The recommended supply voltage can be up to 240 Vac.
