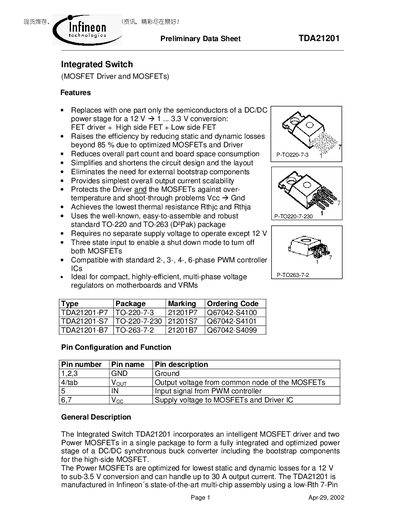

The TDA21201 is an integrated switch that incorporates an intelligent MOSFET driver and two power MOSFETs in a single package to form a fully integrated and optimized power stage of a DC/DC synchronous buck converter.
The Integrated Switch TDA21201 combines a MOSFET driver, a high‑side MOSFET and a low‑side MOSFET in one TO‑220 or TO‑263 package, enabling a compact, efficient power stage for 12 V to sub‑3.3 V DC‑DC converters. It eliminates external bootstrap components and reduces part count, board space, and design complexity.
The document lists absolute maximum ratings, thermal characteristics, electrical parameters, and layout recommendations, and includes typical application circuits for multi‑phase converters, shutdown operation, and current‑sense methods.
| Maximum DC output current | 30 A |
|---|---|
| Junction temperature (max) | 150 °C |
| Thermal resistance, junction‑case | 1.9 K/W |
| Supply voltage range (VCC) | 9 V to 15 V |
| Input signal transition frequency | 100 kHz to 500 kHz |
| Power dissipation | 10 W |
The device can deliver up to 30 A of DC output current at a 12 V supply.
It is rated for junction temperatures from –25 °C up to 125 °C, with a shutdown at 150 °C.
No, the Integrated Switch includes the bootstrap circuitry internally.
The device operates correctly with VCC between 9 V and 15 V.
