BB833 is a tuning diode produced by Texas Instruments for use in TV satellite indoor units. It has a maximum reverse voltage of 30V and a working temperature range of -55°C to 150°C. BB833 features a high frequency range of up to 2.5GHz and a high capacitance ratio.

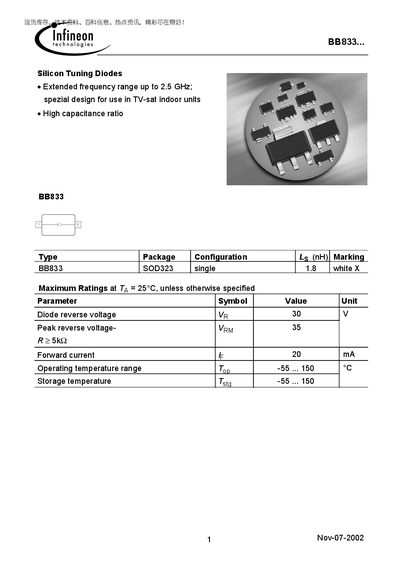

This datasheet describes the Infineon BB833 silicon tuning diode, intended for TV‑sat indoor units with an extended frequency range up to 2.5 GHz. It lists the package type (SOD‑323) and marking details.
Key electrical specifications are presented, including reverse voltage, forward current, temperature ranges, reverse current, capacitance values, capacitance ratio, and series resistance. Typical and maximum values are given for both DC and AC characteristics.
| Reverse voltage (Vr) | 30 V |
|---|---|
| Peak reverse voltage (Vem) | 35 V |
| Forward current (If) | 20 mA |
| Operating temperature range | -55 … 150 °C |
| Storage temperature range | -55 … 150 °C |
The BB833 diode can withstand a reverse voltage of up to 30 V.
The typical forward current rating is 20 mA.
It operates from –55 °C to 150 °C.
