BB833 is a silicon tuning diode produced by Texas Instruments. Its external dimension is SOD323, the rated reverse voltage is 30V, the rated forward current is 20mA, and the working temperature range is -55~150 ℃.

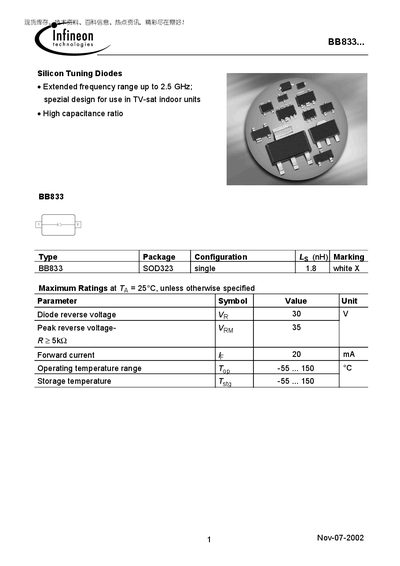

The BB833 silicon tuning diode from Infineon is designed for an extended frequency range up to 2.5 GHz and offers a high capacitance ratio, making it suitable for TV‑sat indoor units. It is supplied in an OD323 package marked BB833.
Key specifications include a maximum reverse voltage of 30 V, peak reverse voltage of 35 V, forward current of 20 mA, and an operating temperature range from –55 °C to 150 °C. Detailed DC and AC characteristics such as reverse current, diode capacitance, capacitance ratio, and series resistance are provided for various test conditions.
| Maximum reverse voltage (Ve) | 30 V |
|---|---|
| Peak reverse voltage (Vem) | 35 V |
| Forward current (If) | 20 mA |
| Operating temperature range | -55 °C to 150 °C |
The maximum reverse voltage is 30 V.
It operates from –55 °C up to 150 °C.
