XLP3200T simple inverter is a simple and easy-to-use inverter, which is mainly used to control the starting, speed regulation and braking of AC motors.

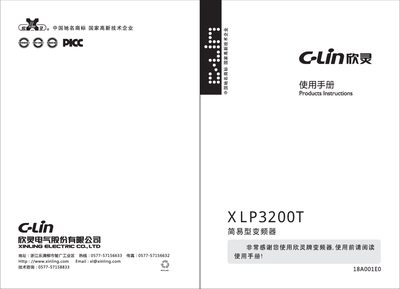

This manual introduces the Xinling XLP3200T frequency inverter, covering safety symbols, precautions, and the required environment for reliable operation. It explains the product’s specifications, model codes, and basic functional groups.
The guide details installation and wiring procedures, control and communication terminals, RS485 networking, and routine maintenance, including component replacement and storage recommendations. Quality assurance and warranty information are also provided. This manual is written in Chinese.
| Input Voltage Level | 220 V |
|---|---|
| Frequency Range | 0.01‑600 Hz |
| Input Voltage Range | 160‑240 V |
| Control Method | SAPWM vector control |
| Overload Capacity | 150 % of rated current for 1 min |
| Acceleration/Deceleration Time | 0.1‑3600 s (adjustable) |
| Maximum RS485 Devices | 31 units |
Up to 31 inverters can be linked together on one RS485 network.
It can handle 150 % of the rated output current for one minute.
