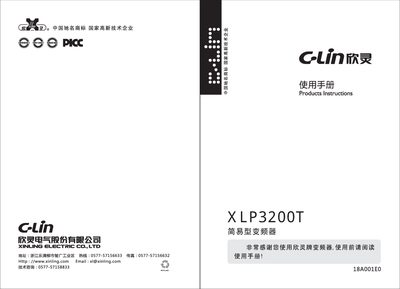

Xinling XLP3200T Variable Frequency Drive User Manual
This manual introduces the Xinling XLP3200T variable frequency drive, covering safety symbols, recommended installation environment, and detailed product specifications. It guides users through unpacking, model identification, and proper mounting.
The document also explains wiring of power and control terminals, RS485 communication setup, and routine maintenance, including fan and capacitor replacement, as well as storage and warranty information. This manual is written in Chinese.
Xinling XLP3200T specifications
| Input voltage level | 220V / 400V |
|---|---|
| Frequency range | 0.01 Hz – 600 Hz |
| Input voltage range | 160 V – 240 V |
| Control method | SAPWM vector control |
| Torque characteristic adjustability | 0 % – 30 % |
| Overload capacity | 150 % of rated current for 1 min |
| Acceleration/Deceleration time | 0.1 s – 3600 s (adjustable) |
| Operating temperature | -10 °C – +45 °C |
| Relative humidity | 20 % – 90 % RH (no condensation) |
| Maximum vibration | < 0.5 G |
Source: Xinling XLP3200T Variable Frequency Drive User Manual
All Xinling XLP3200T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the output terminals be connected to a three‑phase motor?
Connect the U, V, W output terminals to the three phases of the motor; if the rotation direction is opposite, swap any two phases.
How many inverters can be connected on a single RS485 bus?
Up to 31 inverters can be linked together on one RS485 network.
What is the overload capacity of the XLP3200T?
It can handle 150 % of the rated output current for one minute.
