This document is about the specifications of DJ1-A, DJ1-B, DJ1-C, DJ1-P, DJ1-E. It includes information such as rated voltage, current, frequency, switching time, maximum switching current.

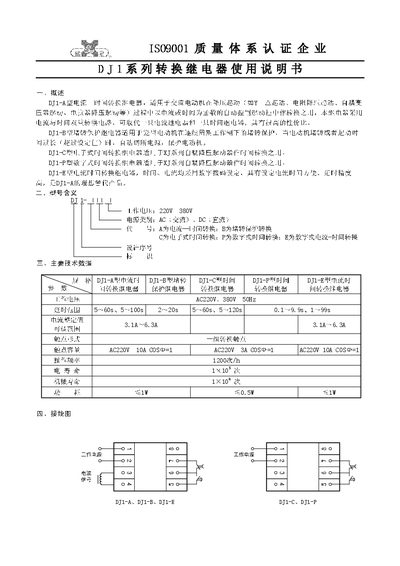

This manual provides the technical specifications and wiring information for the DJ1 series transform relay. It lists voltage ranges, current ratings, power dissipation, and terminal designations for each relay variant (DJ1‑A, DJ1‑B, DJ1‑C, DJ1‑P, DJ1‑E).\n\nThe document also includes parameter tables for setting time delays and current limits, helping installers configure the relay for AC 220 V or 380 V operation at 50 Hz. It serves as a reference for proper connection and adjustment of the relay in electrical control systems. This manual is written in Chinese.
| Voltage rating | AC 220 V / 380 V 50 Hz |
|---|---|
| Current rating | 3.1 A / 6.3 A |
The DJ1 relay supports AC 220 V and 380 V at 50 Hz.
The relay is rated for currents of 3.1 A and 6.3 A.
