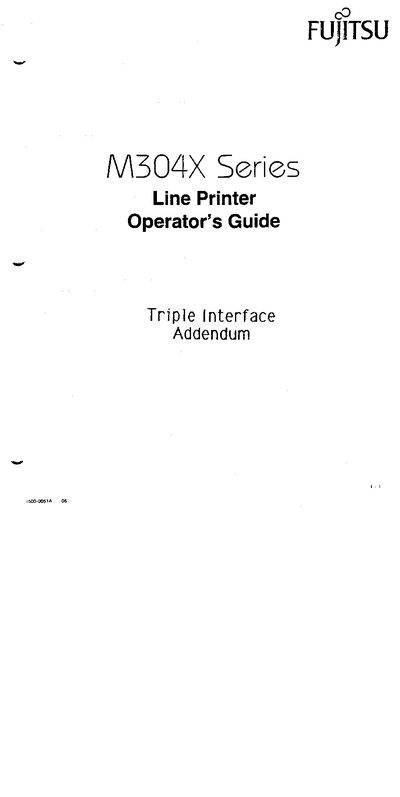

This guide covers the installation of the M304X series line printer, including power and interface cable connections, initial power‑on procedures, and optional operator panels. Detailed instructions are provided for mounting forms, ribbons, and print bands, as well as for configuring the printer’s setup menus and test functions.
Maintenance topics include cleaning the base unit, forms feed unit, ribbon unit, and replacing consumables such as the print band, ribbon, and wax. Status indicator displays and test menus are described to help diagnose printing and feed errors.
Connect the male plug to an AC receptacle and the female plug to the printer.
The SFIPRT (Shift Printing) test prints a shift pattern of all characters on the print band.
