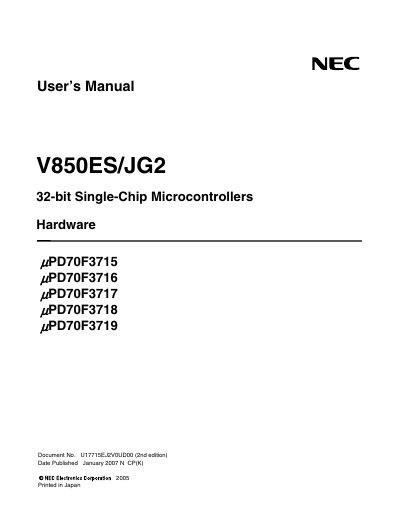

This manual introduces the hardware circuit of V850ES/JG2 32-bit single-chip microcontrollers.
This manual provides a detailed description of the V850ES/JG2 32‑bit single‑chip microcontroller, covering hardware architecture, pin functions, on‑chip peripherals, instruction set, flash programming, and electrical specifications. It is intended for engineers who design applications using the V850ES/JG2 and need a thorough understanding of its operation.
The document also includes handling guidelines for CMOS inputs, ESD precautions, power‑on/off sequencing, and references to related development‑tool manuals. Appendices contain revision history, cautions, and a register index for quick reference.
| Architecture | 32‑bit Single‑Chip Microcontroller |
|---|
A reset operation must be executed immediately after power‑on for devices with reset functions.
