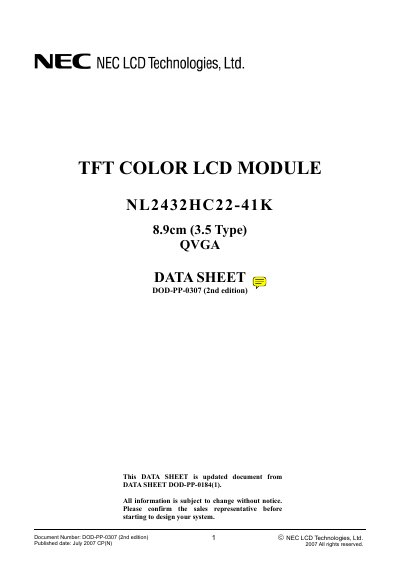

This is a 8.9 cm (3.5 type) QVGA TFT color LCD module.
The NL2432HC22-41K is a 3.5‑inch QVGA color TFT LCD module with an a‑Si active‑matrix driver, backlight and touch panel. It is intended for PDAs, industrial robots, and other electronic equipment requiring a compact high‑contrast display.
The sheet lists mechanical dimensions, electrical ratings, pin assignments, and design recommendations for the front bezel and touch‑panel integration, helping designers incorporate the module into their products.
| Display area | 53.64 mm × 71.52 mm |
|---|---|
| Diagonal size | 8.9 cm (3.5 inches) |
| Resolution | 240 × 320 pixels |
| Color depth | 262,144 colors (18‑bit) |
| Supply voltage (VCC) | 3.0 V (typ.) |
| Power consumption (LCD panel) | 50 mW (typ.) |
| Backlight power | 384 mW (typ., IL=20 mA) |
| Module size | 63.5 mm × 85.0 mm × 4.2 mm (typ.) |
| Weight | 43 g (typ.) |
The display has a diagonal size of 8.9 cm (3.5 inches).
It operates from a typical VCC of 3.0 V.
The module provides a resolution of 240 × 320 pixels.
The typical weight is 43 g.
