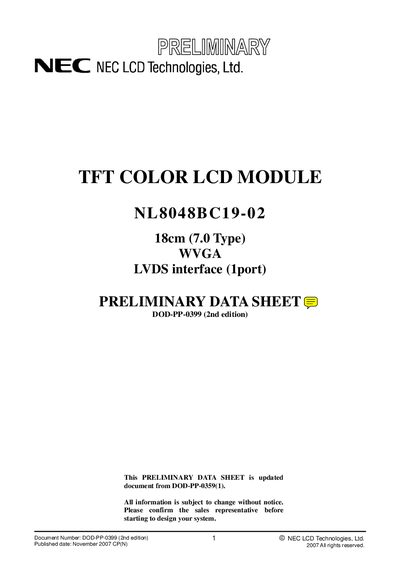

This is a preliminary data sheet for NEC LCD Technologies, Ltd. NL8048BC19-02 18cm (7.0 Type) WVGA LVDS interface (1port)
The NL8048BC19-02 is an 18 cm (7.0‑inch) WVGA TFT color LCD module with an LVDS (1‑port) interface, designed for industrial applications. It features a 800 × 480 pixel resolution, 16.7 M colors, high contrast and wide viewing angles.
The data sheet lists mechanical dimensions, weight, power consumption, backlight details, absolute maximum ratings and signal timing information, helping designers integrate the module into their systems.
| Display area | 152.4 mm × 91.44 mm |
|---|---|
| Diagonal size | 18 cm (7.0 inches) |
| Resolution | 800 × 480 pixels |
| Contrast ratio | 500:1 (typ.) |
| Viewing angle (horizontal) | 80° (typ.) |
| Module size | 170.0 mm × 111.0 mm × 8.5 mm (typ.) |
| Weight | 170 g (typ.) |
| Interface | LVDS (1‑port) |
| LVDS receiver | THC63LVDF84B |
It uses a single‑port LVDS interface.
The module measures 170.0 mm × 111.0 mm × 8.5 mm and the display area is 152.4 mm × 91.44 mm.
The typical contrast ratio is 500:1.
