NEC L_Line Demonstration Kit User Manual

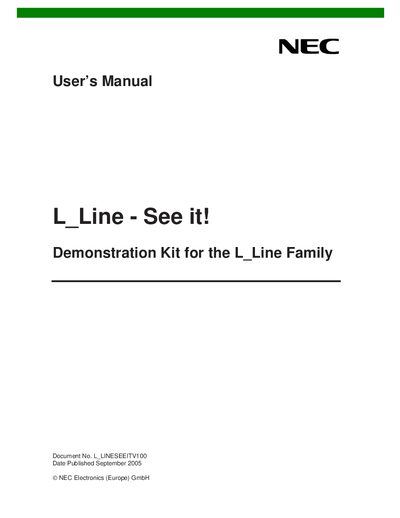

L_Line - See it! User’s Manual, introduces the L_Line Family Demonstration Kit

Brand: NEC
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 87
File format: PDF
File size: 3.8 MB
Published: 07 April, 2012
Updated: 01 October, 2023
MD5 checksum: B00EA72F138A077B0DD63C28278FFC42
PDF: NEC L_Line Demonstration Kit User Manual PDF

About this manual

The NEC L_Line Demonstration Kit User Manual provides detailed information on the kit’s hardware configuration, required system components, and safety notices. It includes instructions for installing the USB power supply, connecting peripherals, and using the on‑board debug features.

The guide also walks users through software setup, including IAR Embedded Workbench, device file installation, and the FPL3 FLASH programming GUI. Troubleshooting tips and sample projects are provided to help users get the most out of the kit.

What's inside

Main features
System requirements
Package contents
System configuration
Components
On‑Chip debugging
Installation and operation
Hardware installation
Software installation
Troubleshooting

Specifications

Power supply interface	USB
USB cable type	Mini‑B
Memory map	78K0/LG2

Frequently asked questions

What is the document number of this manual?

The document number is L_LINESEEITV100.

When was this manual published?

It was published in September 2005.
