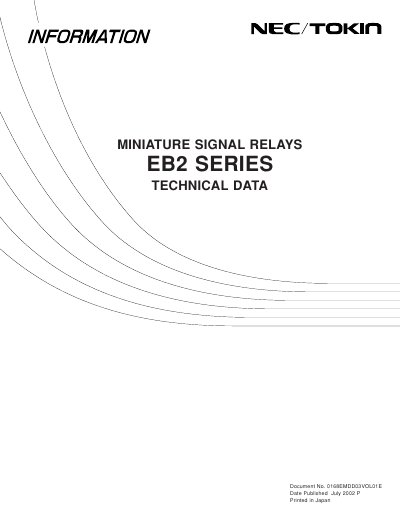

This document is about the technical data of EB2 series miniature signal relays, introducing the basic characteristics, distribution characteristics, test data and other information of the products.
The EB2 series miniature signal relays are designed for use in communication, measurement, and factory automation applications. This handbook provides the basic characteristics, test data, and environmental specifications needed for designing circuits that incorporate these relays.
The document includes detailed information on coil voltage limits, temperature rise, contact materials, mechanical life tests, and a range of environmental tests such as high‑temperature, low‑temperature, moisture resistance, heat‑shock, vibration, and reflow solder heat testing.
| Rated coil voltage | 3 to 24 Vdc |
|---|---|
| Maximum coil voltage decrease | 50% per 45 °C |
| Cover material | Liquid crystalline polymer |
| Base material | Liquid crystalline polymer |
| Coil wire material | Polyurethane copper wire |
| Coil spool material | Polyphenylene‑sulfide |
| Core material | Pure iron |
| Moving contact material | Au‑alloy + AgNi |
| Stationary contact material | Au‑alloy + AgNi |
| Terminal material | Phosphor bronze (surface treated with preparatory solder) |
| Magnet material | Cobalt magnet |
| Sealing material | Epoxy resin |
The EB2 series relay is rated for a coil voltage of 3 to 24 Vdc.
Both the moving and stationary contacts are made of an Au‑alloy combined with AgNi.
The relay undergoes high‑temperature, low‑temperature, moisture resistance, heat‑shock, vibration, shock, and reflow solder heat tests.
They are used in communication, measurement, and factory automation applications.
