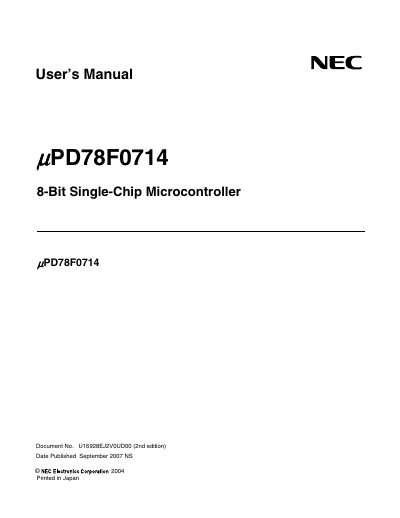

NEC uPD78F0714 User Manual

About this manual

This NEC user manual provides engineers with detailed information on the uPD78F0714 8‑bit single‑chip microcontroller. It includes functional descriptions, pin assignments, CPU architecture, memory organization, and electrical specifications needed for design and development.

The document also contains handling precautions such as ESD protection, power‑on/off sequencing, and recommendations for unused input pins, as well as references to related development tools and programming resources.

What's inside

• Outline
• Pin Functions
• CPU Architecture
• Memory Space
• Electrical Specifications
• Precautions and Handling
• Power‑On/Off Sequence
• Related Development Tools
• Revision History

Specifications

Frequently asked questions

How should unused input pins be handled?

Connect each unused pin to VCC or GND through a resistor to fix its level and prevent noise‑induced malfunction.
