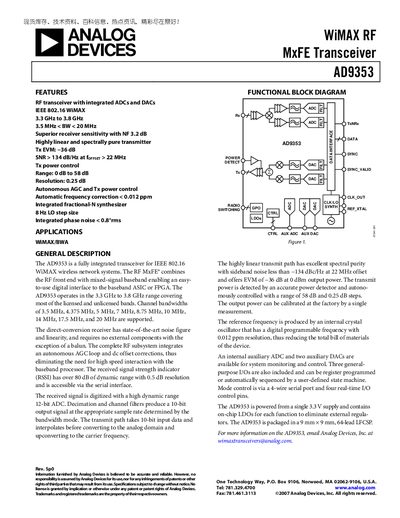

AD9353 is a 3.3 GHz to 3.8 GHz WiMAX RF transceiver from Analog Devices that features integrated ADCs and DACs, superior receiver sensitivity, high linearity and low phase noise.
The AD9353 WiMAX RF MxFE transceiver integrates the RF front‑end with mixed‑signal baseband, providing a digital interface to ASICs or FPGAs. It operates from 3.3 GHz to 3.8 GHz and supports channel bandwidths from 3.5 MHz up to 20 MHz.
Key features include a 12‑bit ADC, 10‑bit DAC, autonomous AGC, automatic frequency correction (<0.012 ppm), 8 Hz LO step size, and a low‑phase‑noise synthesizer. The device is powered from a single 3.3 V supply and packaged in a 9 mm × 9 mm, 64‑lead LFCSP.
| Frequency range | 3.3 GHz to 3.8 GHz |
|---|---|
| Supported bandwidth | 3.5 MHz < BW < 20 MHz |
| Noise figure | 3.2 dB |
| Transmit EVM | ‑36 dB |
| SNR | > 134 dB/Hz |
| Tx power control range | 0 dB to 58 dB |
| Tx power control resolution | 0.25 dB steps |
| Frequency correction | < 0.012 ppm |
| LO step size | 8 Hz |
| Phase noise | < 0.8° rms |
| ADC resolution | 12‑bit |
| DAC resolution | 10‑bit input data |
| Supply voltage | 3.3 V single supply |
| Package | 9 mm × 9 mm, 64‑lead LFCSP |
It operates from 3.3 GHz to 3.8 GHz.
The receiver has a noise figure of 3.2 dB.
The AD9353 includes a 12‑bit ADC.
Transmit power can be controlled from 0 dB to 58 dB in 0.25 dB steps.
