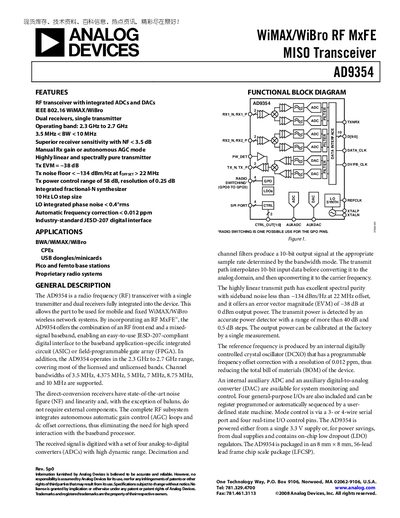

The AD9354 is a radio frequency (RF) transceiver with integrated ADCs and DACs. It features high sensitivity, low noise, and high linearity, and is suitable for applications such as BWA/WiMAX/WiBro CPEs, USB dongles/minicards, Pico and femto base stations.
The AD9354 is a mixed‑signal RF transceiver that combines a single transmitter with dual receivers in a compact 8 mm × 8 mm LFCSP package. It supports the 2.3 GHz‑2.7 GHz band and bandwidths from 3.5 MHz to 10 MHz, providing high‑performance receiver sensitivity (NF < 3.5 dB) and a spectrally pure transmitter (Tx EVM = ‑38 dB).
The device includes an internal fractional‑N synthesizer, automatic frequency correction (< 0.012 ppm), and a JESD‑207 digital interface for easy connection to ASICs or FPGAs. Power can be supplied from a single 3.3 V rail or dual supplies, and the part offers on‑chip LDO regulators, auxiliary ADC/DAC, and four programmable I/Os.
| Operating band | 2.3 GHz to 2.7 GHz |
|---|---|
| Supported bandwidth | 3.5 MHz – 10 MHz |
| Receiver noise figure | < 3.5 dB |
| Tx EVM | -38 dB |
| Tx noise floor | < ‑134 dBm/Hz at > 22 MHz offset |
| Tx power control range | 58 dB, 0.25 dB step |
| LO step size | 10 Hz |
| LO phase noise | < 0.4° rms |
| Frequency correction resolution | < 0.012 ppm |
It operates from 2.3 GHz to 2.7 GHz.
The device has dual receivers and a single transmitter.
It uses the industry‑standard JESD‑207 digital interface.
