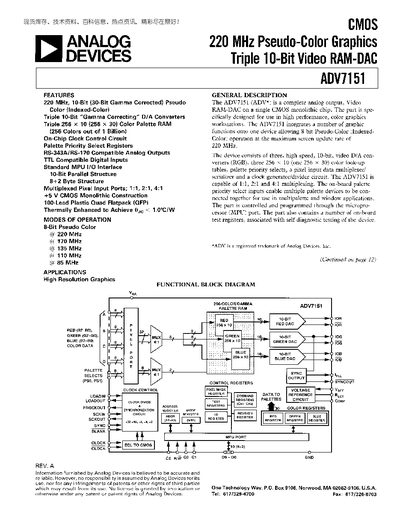

The ADV7151 is a CMOS 10‑bit video RAM‑DAC designed for high‑performance color graphics workstations. It integrates three 10‑bit video D/A converters, palette RAM, and a programmable clock generator, supporting 1:1, 2:1 and 4:1 multiplexing modes.
The document provides full electrical specifications, timing characteristics, recommended operating conditions, absolute maximum ratings, and thermal considerations for the 100‑lead plastic QFP package.
| Resolution (Each DAC) | 10 Bits |
|---|---|
| Input High Voltage (Digital Inputs) | 2 V min |
| Ambient Operating Temperature | 0 °C to +70 °C |
| Voltage Reference Range | 1.14 V to 1.26 V |
The recommended operating temperature range is 0 °C to +70 °C.
It is supplied in a 100‑lead plastic quad flat‑pack (QFP).
