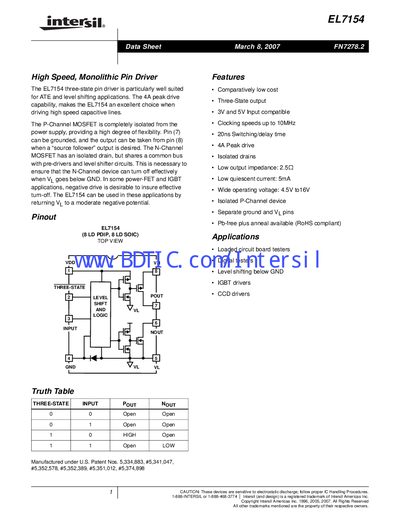

EL7154 is a three-state pin driver particularly well suited for ATE and level shifting applications. The 4A peak drive capability makes the EL7154 an excellent choice when driving high speed capacitive lines. The P-Channel MOSFET is completely isolated from the power supply, providing a high degree of flexibility. Pin (7) can be grounded, and the output can be taken from pin (8) when a “source follower” output is desired. The N-Channel MOSFET has an isolated drain, but shares a common bus with pre-drivers and level shifter circuits. This is necessary to ensure that the N-Channel device can turn off effectively when VL goes below GND. In some power-FET and IGBT applications, negative drive is desirable to insure effective turn-off. The EL7154 can be used in these applications by returning VL to a moderate negative potential.
The EL7154 is a high‑speed, monolithic three‑state pin driver designed for ATE and level‑shifting applications. It features a P‑Channel MOSFET isolated from the supply and an N‑Channel MOSFET with an isolated drain, offering flexibility for both source‑follower and sink configurations.
Key specifications include a 4 A peak drive, 20 ns switching delay, 4.5 V‑to‑16 V operating range, and clocking speeds up to 10 MHz. The device is offered in 8‑lead PDIP and 8‑lead SOIC packages, with detailed mechanical dimensions and RoHS‑compliant options.
| Switching/Delay Time | 20 ns |
|---|---|
| Operating Voltage Range | 4.5 V to 16 V |
| VIH (Logic 1) Input Voltage | 2.4 V |
| VIL (Logic 0) Input Voltage | 0.6 V |
| Quiescent Current | 5 mA |
| Maximum Clocking Speed | 10 MHz |
It operates from 4.5 V up to 16 V.
The part is offered in 8‑lead PDIP (EL7154CN) and 8‑lead SOIC (EL7154CS) packages.
The EL7154 supports clocking speeds up to 10 MHz.
