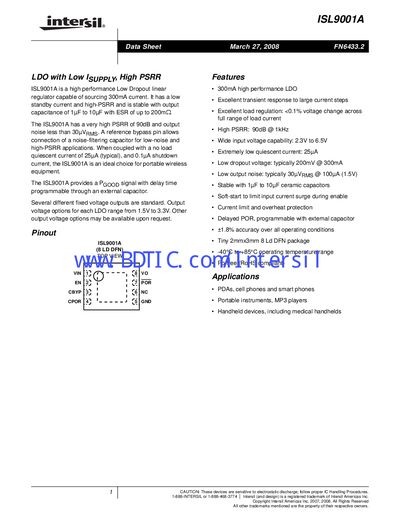

ISL9001A is a high performance low dropout linear regulator capable of sourcing 300mA current. It has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ. The ISL9001A has a very high PSRR of 90dB and output noise less than 30µVRMS. A reference bypass pin allows connection of a noise-filtering capacitor for low-noise and high-PSRR applications. When coupled with a no load quiescent current of 25µA (typical), and 0.1µA shutdown current, the ISL9001A is an ideal choice for portable wireless equipment. The ISL9001A provides a PGOOD signal with delay time programmable through an external capacitor. Several different fixed voltage outputs are standard. Output voltage options for each LDO range from 1.5V to 3.3V. Other output voltage options may be available upon request.
The ISL9001A is a high‑performance LDO regulator designed for portable wireless equipment and handheld devices. It delivers up to 300 mA with a low standby current, high power‑supply rejection (90 dB at 1 kHz) and low output noise (<30 µV rms). The device operates from 2.3 V to 6.5 V input and is stable with output capacitors from 1 pF to 10 µF.
Key features include a programmable power‑on‑reset delay, soft‑start circuitry, over‑current and over‑heat protection, and a tiny 8‑lead DFN package. The datasheet provides detailed electrical specifications, pin descriptions, typical performance curves, and ordering information.
| Maximum Output Current | 300 mA |
|---|---|
| Dropout Voltage (typical) | 200 mV @ 300 mA |
| Power‑Supply Rejection Ratio | 90 dB @ 1 kHz |
| Shutdown Current | 0.1 µA |
| Input Voltage Range | 2.3 V to 6.5 V |
The device can source up to 300 mA continuously.
The regulator provides a PSRR of 90 dB at 1 kHz.
