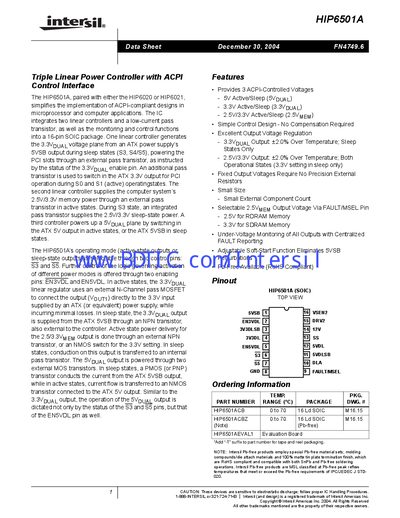

The HIP6501A is a triple linear power controller with an ACPI control interface. It integrates two linear controllers and a low-current pass transistor, as well as monitoring and control functions. It simplifies the implementation of ACPI-compliant designs in microprocessor and computer applications.
The HIP6501A is a triple linear power controller designed for ACPI‑compliant microprocessor and computer systems. It integrates two linear regulators and a low‑current pass transistor to generate 3.3 V, 5 V, and 2.5/3.3 V memory rails from an ATX power supply, with dedicated pins for sleep‑state control and fault reporting.
The document provides full pinout information, absolute maximum ratings, recommended operating conditions, electrical specifications, functional pin descriptions, truth tables for output control, timing diagrams, and a soft‑start circuit description, as well as package dimensions and ordering details.
| Operating Supply Current (I5SB) | 20 mA |
|---|---|
| Ambient Temperature Range | 0 °C to 70 °C |
| Junction Temperature Range | -0 °C to 125 °C |
| 3.3 V Linear Regulator Regulation | ±2.0 % |
| 5 V Dual Switch Controller Under‑Voltage Threshold | 3.750 V |
The HIP6501A supplies three ACPI‑controlled voltages: 3.3 V, 5 V, and a selectable 2.5 V or 3.3 V memory rail.
The device is specified for an ambient temperature range of 0 °C to 70 °C and a junction temperature range up to 125 °C.
The soft‑start begins when the 5VSB power‑on‑reset (POR) voltage exceeds its threshold, triggering an internal current source that charges an external capacitor to ramp the output voltages.
