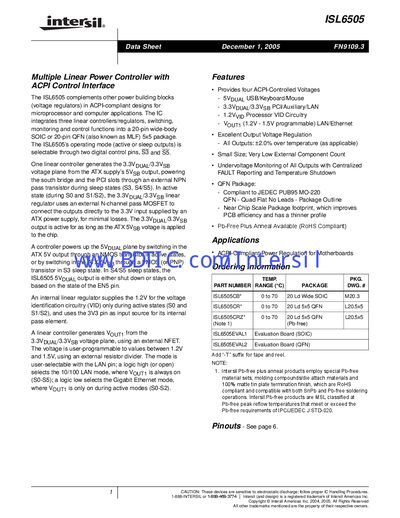

ISL6505 is a multiple linear power controller with ACPI control interface. The ISL6505 integrates three linear controllers/regulators, switching, monitoring and control functions into a 20-pin wide-body SOIC or 20-pin QFN (also known as MLF) 5x5 package.
The ISL6505 is a multiple linear power controller designed for ACPI‑compliant microprocessor and computer systems. It integrates three linear regulators, switching, monitoring and control functions in a 20‑pin SOIC or 5×5 mm QFN package.
Key features include four ACPI‑controlled output voltages, programmable LAN/Ethernet voltage, low external component count, and built‑in undervoltage and temperature fault monitoring. The document lists electrical specifications, pin descriptions, timing diagrams and mechanical dimensions for designers.
