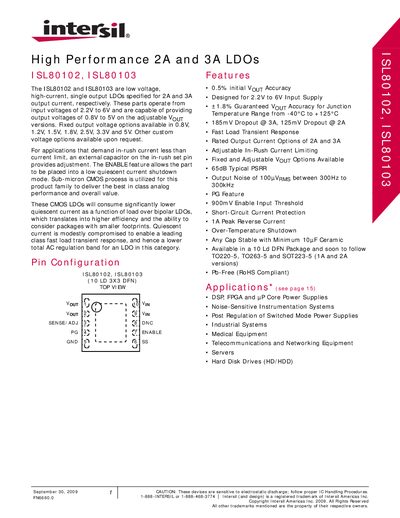

The ISL80102 and ISL80103 are low voltage, high-current, single output LDOs specified for 2A and 3A output current, respectively. These parts operate from input voltages of 2.2V to 6V and are capable of providing output voltages of 0.8V to 5V on the adjustable VOUT versions.
The ISL80102/ISL80103 family are low‑voltage, high‑current LDO regulators designed for 2 A (ISL80102) and 3 A (ISL80103) output currents. They operate from 2.2 V to 6 V input and provide fixed or adjustable output voltages from 0.8 V to 5 V. Key features include low quiescent current, fast load‑transient response, 65 dB typical PSRR, and integrated protection such as short‑circuit and over‑temperature shutdown.
Typical applications cover DSP, FPGA, micro‑processor core supplies, noise‑sensitive instrumentation, switched‑mode power‑supply post‑regulation, industrial and medical equipment. The devices are offered in a 10‑lead 3 × 3 mm DFN package and are RoHS‑compliant.
| Input voltage range | 2.2 V to 6 V |
|---|---|
| Output current rating | 2 A (ISL80102) / 3 A (ISL80103) |
| Dropout voltage (3 A) | 185 mV |
| Dropout voltage (2 A) | 125 mV |
| Power‑Supply Rejection Ratio (PSRR) | 65 dB typical |
| Enable input threshold | 900 mV |
| Short‑circuit / reverse current | 1 A peak reverse |
| Over‑temperature shutdown | Enabled |
| Package | 10‑lead DFN 3 × 3 mm |
The devices operate from input voltages of 2.2 V to 6 V.
The dropout voltage is 185 mV at a 3 A load.
Typical PSRR is 65 dB.
