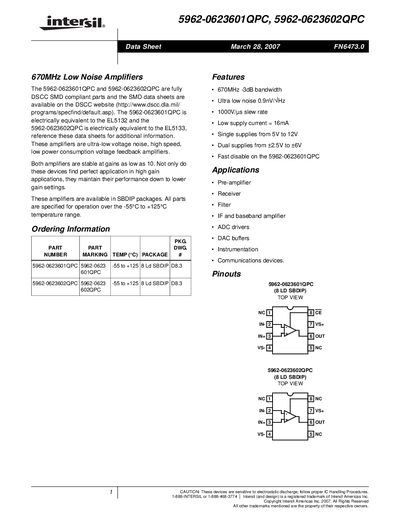

The 5962-0623601QPC and 5962-0623602QPC are 670MHz low noise amplifiers with ultra-low voltage noise, high speed, low power consumption voltage feedback amplifiers. Both amplifiers are stable at gains as low as 10. Not only do these devices find perfect application in high gain applications, they maintain their performance down to lower gain settings. These amplifiers are available in SBDIP packages. All parts are specified for operation over the -55°C to +125°C temperature range.
The 5962-0623601QPC is a 670 MHz low‑noise, high‑speed voltage‑feedback amplifier designed for pre‑amplifier, receiver, filter, IF/baseband, ADC driver, DAC buffer, instrumentation and communications applications. It operates from single supplies of 5 V to 12 V or dual supplies of +2.5 V to +6 V and includes a fast disable function.
Key specifications include a -3 dB bandwidth of 670 MHz, ultra‑low input noise of 0.9 nV/√Hz, slew rate of 1000 V/µs, supply current of 16 mA, and an operating temperature range of –55 °C to +125 °C. The device is supplied in an 8‑lead SBDIP ceramic dual‑in‑line package with pin 8 (CE) serving as the enable/disable input.
| -3 dB Bandwidth | 670 MHz |
|---|---|
| Input Noise Voltage | 0.9 nV/√Hz |
| Slew Rate | 1000 V/µs |
| Supply Current | 16 mA |
| Operating Temperature Range | -55 °C to +125 °C |
| Gain‑Bandwidth Product | 3000 MHz |
| Input Resistance | 5 MΩ |
| Input Capacitance | 2 pF |
| Supply Voltage (single) | 5 V to 12 V |
| Supply Voltage (dual) | +2.5 V to +6 V |
It has a -3 dB bandwidth of 670 MHz.
It can run from single supplies of 5 V to 12 V or dual supplies of +2.5 V to +6 V.
The device is specified for operation from –55 °C to +125 °C.
Pin 8 (CE) is the enable and disable input.
