80C286/883 is an Intersil high-performance microprocessor with built-in memory protection that supports operating system and task isolation as well as program and data privacy within tasks.

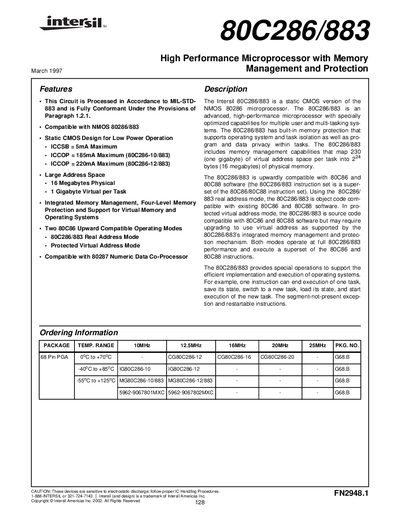

The Intersil 80C286/883 is a static CMOS version of the NMOS 80286 microprocessor, offering integrated memory management, protection, and support for virtual memory. This document supplies the technical data needed by designers and engineers to evaluate and integrate the device.
Key sections include features, a detailed pinout diagram, absolute maximum ratings, DC and AC electrical performance specifications, timing tables, waveform illustrations, die characteristics, and ordering information.
| Operating voltage range | +4.5 V to +5.5 V |
|---|---|
| Operating temperature range | 55 °C to +125 °C |
| Maximum supply current (ICCOP) for 80C286‑12/883 | 220 mA |
| Package type | 68‑pin PGA |
It operates from 55 °C up to +125 °C.
The device is offered in a 68‑pin PGA package.
Yes, it is compatible with the 80287 numeric data co‑processor.
