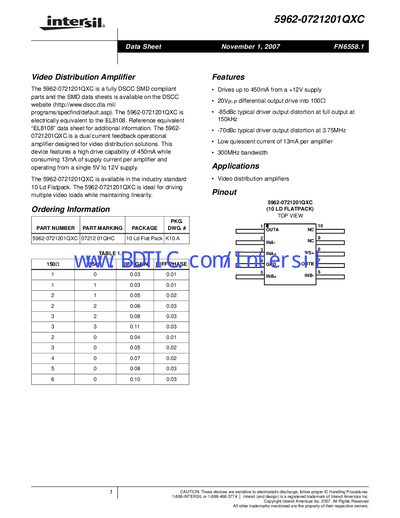

The 5962-0721201QXC is a video distribution amplifier designed by Intersil. It features a high drive capability of 450mA and a wide operating voltage range of 5V to 12V. It also has a low power consumption of only 13mA.
The 5962-0721201QXC is a dual current‑feedback operational amplifier designed for video distribution solutions. It delivers up to 450 mA drive current from a +12 V supply, provides a typical 300 MHz bandwidth, and consumes only 138 mA per amplifier in quiescent mode. The device is supplied in a 10‑lead flat‑pack and is electrically equivalent to the EL8108.
Typical applications include driving multiple coaxial video cables, high‑speed video loads, and other video distribution circuits. Proper PCB layout, short lead lengths, and adequate power‑supply bypassing (4.7 µF tantalum in parallel with 0.1 pF ceramic per supply pin) are recommended for optimal performance.
| Maximum drive current | 450 mA |
|---|---|
| Quiescent current per amplifier | 138 mA |
| Bandwidth (typical) | 300 MHz |
| Differential output drive | 20 Vpp into 100 Ω |
| Supply voltage range | +2.5 V to +12 V |
| Input voltage range (Vg+) | -0.3 V to +13.2 V |
| Input noise voltage | 6 nV/√Hz |
It can drive up to 450 mA from a +12 V supply.
The typical bandwidth is 300 MHz.
It operates from +2.5 V up to +12 V (single‑supply operation).
Use a 4.7 µF tantalum capacitor in parallel with a 0.1 pF ceramic capacitor on each supply pin.
