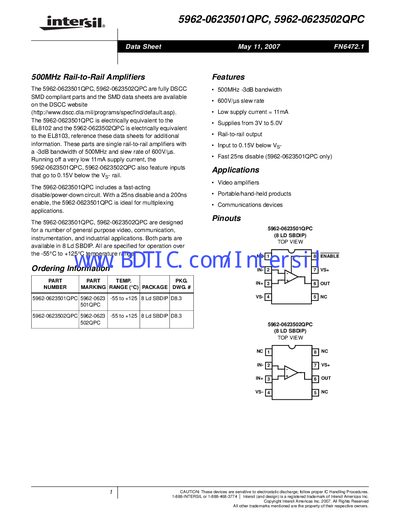

The 5962-0623501QPC, 5962-0623502QPC 500MHz Rail-to-Rail Amplifiers are single supply rail-to-rail amplifiers with a -3dB bandwidth of 500MHz and a slew rate of 600V/µs. They operate off a very low 11mA supply current and also feature inputs that go to 0.15V below the VS- rail. The 5962-0623501QPC includes a fast-acting disable/power-down circuit. With a 25ns disable and a 200ns enable, the 5962-0623501QPC is ideal for multiplexing applications. The 5962-0623501QPC, 5962-0623502QPC are designed for a number of general purpose video, communication, instrumentation and industrial applications. Both parts are available in 8 Ld SBDIP. All are specified for operation over the -55°C to +125°C temperature range.
The 5962-0623501QPC is a single‑rail, rail‑to‑rail amplifier offering a 500 MHz -3 dB bandwidth, 600 V/µs slew rate, and low 11 mA supply current. It operates from 3 V to 5 V and features inputs that extend 0.15 V below the negative rail. The device includes a fast‑acting 25 ns disable circuit, making it suitable for multiplexing applications.
The datasheet details electrical specifications, absolute maximum ratings, pin descriptions, and package dimensions for the 8‑lead SBDIP ceramic dual‑in‑line metal seal package. It also lists typical applications such as video amplifiers, portable products, and communication devices.
| Bandwidth (-3dB) | 500 MHz |
|---|---|
| Slew Rate | 600 V/µs |
| Supply Current | 11 mA |
| Supply Voltage Range | 3 V to 5 V |
| Input Range | 0.15 V below V‑ |
| Disable Time (5962-0623501QPC only) | 25 ns |
| Enable Time (5962-0623501QPC only) | 200 ns |
| Gain Bandwidth Product | 200 MHz |
| Package | 8‑lead SBDIP |
The device has a 500 MHz -3 dB bandwidth.
It draws a low supply current of 11 mA.
Yes, it includes a 25 ns fast‑acting disable circuit (5962-0623501QPC only).
The part is supplied in an 8‑lead SBDIP ceramic dual‑in‑line metal seal package.
