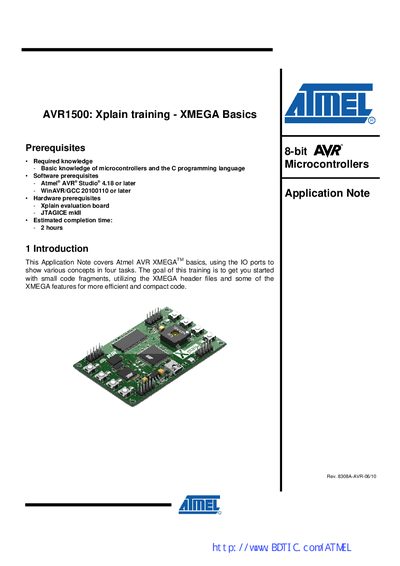

Atmel XMEGA AVR1500 Application Note – Xplain Training

AVR1500: Introduction to Atmel AVR XMEGA, including basic knowledge, C programming language, header files and drivers

Brand: Atmel
Category: Other Electronics
Document type: Application Note
Language: English
Pages: 16
File format: PDF
File size: 427 KB
Published: 27 March, 2012
Updated: 30 September, 2023
MD5 checksum: B948636F248A1B1D9243B6C779274285
PDF: Atmel XMEGA AVR1500 Application Note – Xplain Training PDF

About this manual

The document provides prerequisites, including basic microcontroller knowledge, C programming skills, Atmel AVR Studio 4.18 or later, and the Xplain evaluation board with a JTAGICE mkII. It then explains XMEGA concepts such as bit masks, group masks, and module registers.

Four practical tasks are covered: Basic LED control, Generic drivers, Output and pull‑configuration, and Multi‑configuration. Each task shows code examples, register usage, and step‑by‑step debugging instructions to help you start developing efficient XMEGA applications.

What's inside

Prerequisites
Writing C‑code for XMEGA
Bit Masks and Bit Group Masks
Bit Group Configuration Masks
Module Registers and Addresses
Task 1: Basic LED Control
Task 2: Generic Drivers
Task 3: Output and Pull Configuration
Task 4: Multi Configuration
Technical Support

Specifications

Estimated completion time	2 hours
Software prerequisite	Atmel AVR Studio 4.18 or later
Hardware prerequisite	Xplain evaluation board
Hardware prerequisite	JTAGICE mkII

Frequently asked questions

What knowledge is required before starting the AVR1500 training?

You need basic knowledge of microcontrollers and the C programming language.

How can I change the LED port definition in the basic LED control task?

Edit the LEDPORT #define in the source file; changing this definition redirects the LED control to a different port.
