This is a single-chip synthesized tuner for terrestrial DMB and FM receivers. It features a low-IF single-conversion architecture that eliminates all SAW filters. It covers the entire Band-III (174 ~ 245 MHz) and FM (88 ~ 108 MHz) bands, has an operating dynamic range of -102 ~ -10 dBm, and consumes ultra-low power of only 100 mW. It has 2.85 V single-supply on-chip regulators, an on-chip fast switching fractional-N PLL, an on-chip low phase noise and wide frequency range VCO, an on-chip bandwidth-adjustable low pass filter, an integrated IF variable gain amplifier for direct connection to digital demodulators, noise/linearity optimization through internal RF RSSI and AGC loop, an adjustable take-over point, and is ideal for mobile TV receivers and terrestrial DMB applications. It has an I2C serial bus interface and a small 40-QFN package (6 × 6 mm2).

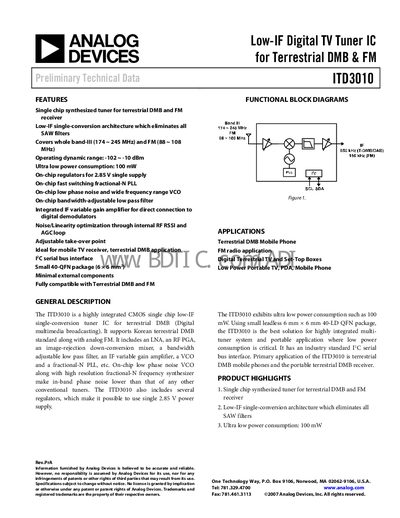

The ITD3010 is a highly integrated CMOS tuner IC that covers the whole Band III (174‑245 MHz) and FM (88‑108 MHz) bands. It features a low‑IF single‑conversion architecture, on‑chip fractional‑N PLL, VCO, regulators, and a 40‑QFN (6 × 6 mm) package, making it suitable for mobile TV and portable receivers.
The device includes an LNA, RF PGA, image‑rejection mixer, adjustable low‑pass filter, IF variable‑gain amplifier, and a serial‑bus interface, delivering an operating dynamic range of –102 ~ –10 dBm and ultra‑low power consumption of 100 mW.
| Operating dynamic range | -102 ~ -10 dBm |
|---|---|
| Power consumption | 100 mW |
| Supply voltage | 2.85 V single supply |
| Package | 40‑QFN (6 × 6 mm) |
| IF bandwidth | 850 kHz (T‑DMB/DAB), 150 kHz (FM) |
The ITD3010 consumes 100 mW of power.
It is offered in a 40‑QFN package measuring 6 × 6 mm.
The dynamic range is –102 ~ –10 dBm.
