ADSMV202 is a low power mobile TV tuner IC that is compatible with ISDB-T (1/3seg) and features ultra low noise figure, ultra low power consumption and ultra small size

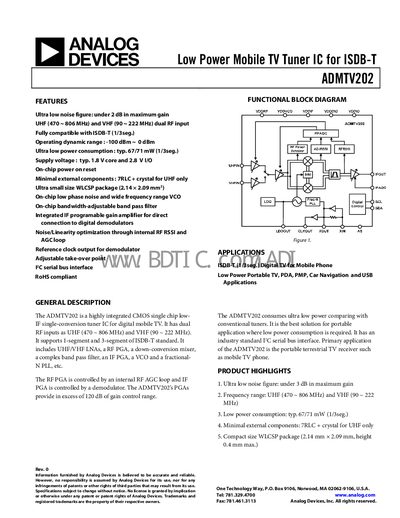

The ADMTV202 is a highly integrated CMOS single‑chip low‑IF tuner for digital mobile TV. It combines dual RF inputs (UHF 470‑806 MHz, VHF 90‑222 MHz), on‑chip LNAs, RF PGA, mixer, band‑pass filter, IF PGA, VCO and fractional‑N PLL, delivering over 120 dB gain control range and an ultra‑low noise figure under 2 dB.
Targeted at portable applications such as mobile TV phones, PDAs, car navigation and USB‑based TV receivers, the device operates from a 1.8 V core and 2.8 V I/O supply, consumes only 67‑71 mW (1/3 seg.) and requires just 7RLC components plus a crystal for UHF operation. It is offered in a compact 2.14 mm × 2.09 mm WLCSP package with a height of ≤0.4 mm and uses a standard I²C serial bus interface.
| Noise Figure | under 2 dB |
|---|---|
| Frequency Range | UHF 470‑806 MHz, VHF 90‑222 MHz |
| Power Consumption | typ. 67/71 mW (1/3 seg.) |
| Supply Voltage | 1.8 V core, 2.8 V I/O |
| Operating Dynamic Range | -100 dBm to 0 dBm |
| Package Size | 2.14 mm × 2.09 mm, height ≤0.4 mm |
| External Components Required | 7RLC + crystal (UHF only) |
| Interface | I²C serial bus |
| Gain Control Range | >120 dB |
It needs a typical 1.8 V core supply and 2.8 V for I/O pins.
It is intended for mobile TV phones, portable TV, PDA, car navigation and other low‑power USB TV receivers.
Only a 7‑element RLC network and a crystal are required for UHF operation.
