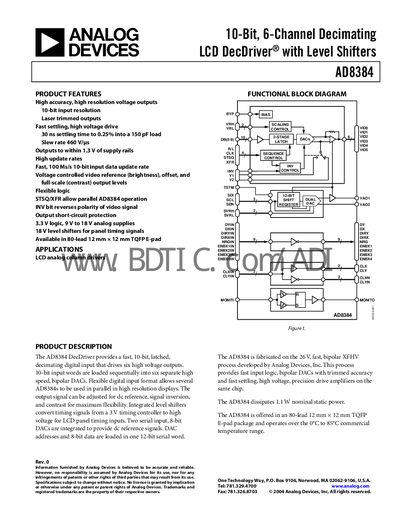

AD8384 is a 10-bit, 6-channel, decimating LCD DecDriver® with Level Shifters from Analog Devices.
The AD8384 DecDriver is a 10‑bit, 6‑channel video driver with integrated level shifters and high‑voltage outputs. It supports fast 100 Ms/s input data updates, 30 ns settling to 0.25 % into a 150 pF load, and provides flexible logic for parallel operation.
The device is offered in an 80‑lead 12 mm × 12 mm TQFP E‑pad package, operates from 3.3 V to 18 V supplies, and is rated for ambient temperatures from 0 °C to 85 °C. Overload protection includes current limiting (100 mA per output) and thermal shutdown for reliable operation.
| Settling time to 0.25% (typ) | 30 ns |
|---|---|
| Slew rate (typ) | 460 V/µs |
| Maximum power dissipation (quiescent) | 1.1 W |
| Operating temperature range (ambient) | 0 °C to 85 °C |
| Maximum input data update rate | 100 Ms/s |
Each output is internally limited to an average of 100 mA for short‑circuit protection.
The device is rated for ambient temperatures from 0 °C to 85 °C, with 75 °C as the limit without forced airflow.
The AD8384 can accept input data at up to 100 Ms/s.
