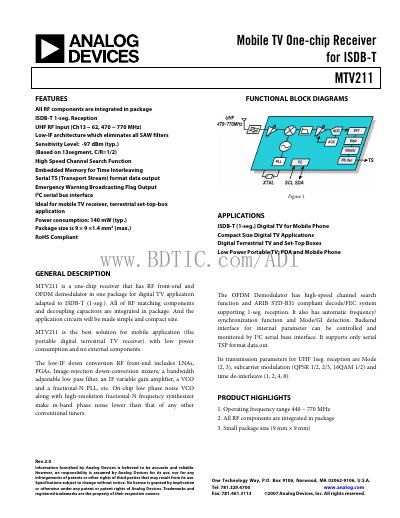

MTV211 is a mobile TV one-chip receiver launched by Analog Devices. It supports ISDB-T 1-seg. reception and UHF RF input (Ch13 ~ 62, 470 ~ 770 MHz). It adopts low-IF architecture and has a sensitivity of -97 dBm (typ.).
The MTV211 integrates all RF front‑end components and an OFDM demodulator in a compact 9 × 9 × 1.4 mm package, targeting mobile TV, set‑top‑box and other portable digital terrestrial TV applications. It offers a low‑IF architecture, high‑speed channel search, and a serial transport‑stream output controlled via a PC serial bus interface.
Key features include a UHF RF input covering 470‑770 MHz, typical sensitivity of –97 dBm, power consumption of about 140 mW, and RoHS compliance. The device is designed for compact, low‑power mobile devices and provides emergency warning flag output and other ISDB‑T 1‑seg specific functions.
| Operating frequency range | 440 ~ 770 MHz |
|---|---|
| UHF RF Input range | 470 ~ 770 MHz (Ch13 ~ 62) |
| Sensitivity (typ.) | -97 dBm |
| Power consumption (typ.) | 140 mW |
| Package size (max.) | 9 × 9 × 1.4 mm |
The MTV211 operates from 440 MHz to 770 MHz.
Typical power consumption is 140 mW.
It outputs data in serial Transport Stream (TS) format.
