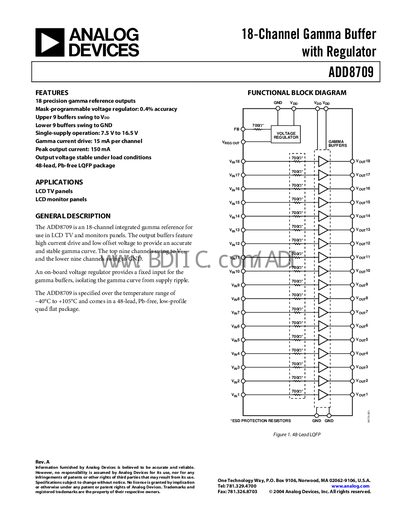

Analog Devices ADD8709 18-Channel Gamma Buffer Datasheet

The ADD8709 is an 18-channel integrated gamma reference for use in LCD TV and monitors panels.

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 16
File format: PDF
File size: 464 KB
Published: 27 March, 2012
Updated: 01 October, 2023
Model: ADD8709
MD5 checksum: A849F8C48131E73F376E48C3863D922E
PDF: Analog Devices ADD8709 18-Channel Gamma Buffer Datasheet PDF

About this manual

The ADD8709 is an 18‑channel integrated gamma reference designed for LCD TV and monitor panels. It provides high‑current gamma buffers with low offset voltage, and includes a mask‑programmable voltage regulator that isolates the gamma curve from supply ripple.

The device operates from a single supply of 7.5 V to 16.5 V, delivers up to 150 mA peak output current, and is supplied in a 48‑lead Pb‑free LQFP package. It is specified for temperatures from –40 °C to +105 °C.

What's inside

Electrical Characteristics
Absolute Maximum Ratings
Pin Configuration and Function Descriptions
Typical Performance Characteristics
Application Notes
Voltage Regulator
Maximum Power Dissipation
Operating Temperature Range
Typical Applications Circuit
Outline Dimensions

Specifications

Number of channels	18
Supply voltage range	7.5 V to 16.5 V
Gamma current drive per channel	15 mA
Peak output current (total)	150 mA
Operating temperature range	-40 °C to +105 °C

Frequently asked questions

What is the supply voltage range for the ADD8709?

The device operates from a single supply of 7.5 V to 16.5 V.

How many gamma reference outputs does the ADD8709 provide?

It provides 18 precision gamma reference outputs.

What is the maximum output current the ADD8709 can deliver?

The peak output current is 150 mA.

What is the operating temperature range of the ADD8709?

The device is specified for –40 °C to +105 °C.
