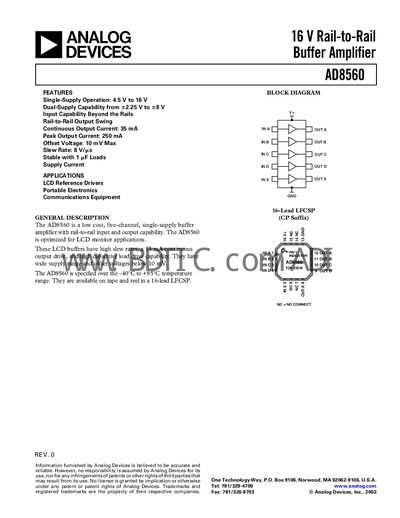

The AD8560 is a low-cost, single-supply buffer amplifier with rail-to-rail input and output capability. It is optimized for LCD monitor applications.
The AD8560 is a five‑channel buffer amplifier optimized for LCD monitor applications. It operates from a single 4.5 V to 16 V supply (or dual 2.25 V to 8 V) and is suitable for LCD reference drivers, portable electronics, and communications equipment.
Key electrical characteristics include a continuous output current of 35 mA, peak output current of 250 mA, slew rate of 8 V/µs, bandwidth of 8 MHz, input offset voltage of 10 mV, and input bias current up to 600 nA. The device is supplied in a 16‑lead LFCSP package and is rated for operation from –40 °C to +85 °C.
| Supply Voltage Range (single‑supply) | 4.5 V to 16 V |
|---|---|
| Continuous Output Current | 35 mA |
| Peak Output Current | 250 mA |
| Package | 16‑Lead LFCSP (CP) |
The AD8560 can deliver up to 35 mA continuous output current.
It operates from a single supply of 4.5 V to 16 V (or dual supply 2.25 V to 8 V).
The AD8560 is offered in a 16‑lead LFCSP (CP) package.
