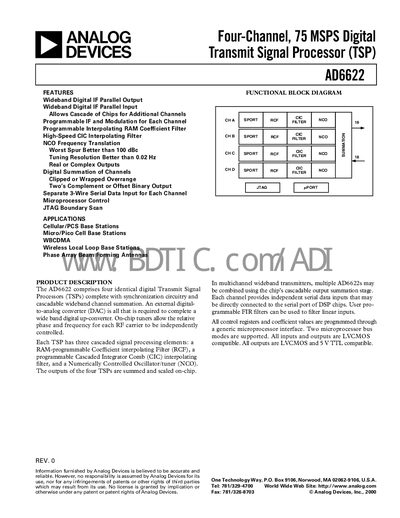

This document introduces the features and characteristics of AD6622 four-channel 75 MSPS digital transmit signal processor (TSP).
The AD6622 is a four‑channel, 75 MSPS digital transmit signal processor (TSP) designed for wideband applications such as cellular base stations and wireless local loop. It includes programmable IF, modulation, interpolating filters, and a numerically controlled oscillator for each channel.
The document contains sections on features, product description, applications, detailed electrical specifications, timing characteristics, absolute maximum ratings, thermal characteristics, ordering guide, pin configuration, and mechanical dimensions, providing all necessary data for designers and system integrators.
| Supply Voltage Range | 2.4 V to 3.3 V |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Package | 128‑Lead MQFP |
| Number of Channels | Four |
The AD6622 operates from 2.4 V to 3.3 V.
It is supplied in a 128‑Lead MQFP package.
